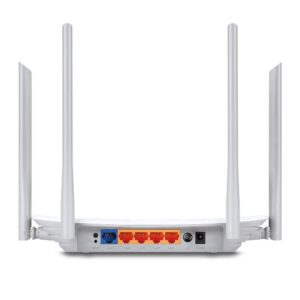

TP-LINK Dual-Band AC1200 5GHz Wi-Fi-Router TL-ARCHER C50

Archer C50 is an AC1200 dual-band WiFi router. Smooth 4K streaming with AC1200 WiFi. Four external antennas provide stable connections and long network coverage. Easy network management with Tether app. Support IGMP Proxy/Snooping, Bridge and VLAN Tagging. Supports Access Point mode.

Better connections with fast dual-band Wi-Fi
Archer C50 features 802.11ac wireless, which is 3x faster than 802.11n wireless. With 300Mbps on the 2.4GHz band and 867Mbps on the crystal-clear 5GHz band, the Archer C50 is a great choice for smooth HD streaming, online gaming, and other bandwidth-intensive activities.

Working Modes:
1. Router Mode (Default) – Connect an Ethernet cable to instantly create a private wireless network that all your Wi-Fi devices can access.
2. Access Point Mode – Transform your wired network into a wireless network.
3. Repeater Mode – Extend the range of your wireless network.

4 Antennas & Beamforming – Maximum Coverage

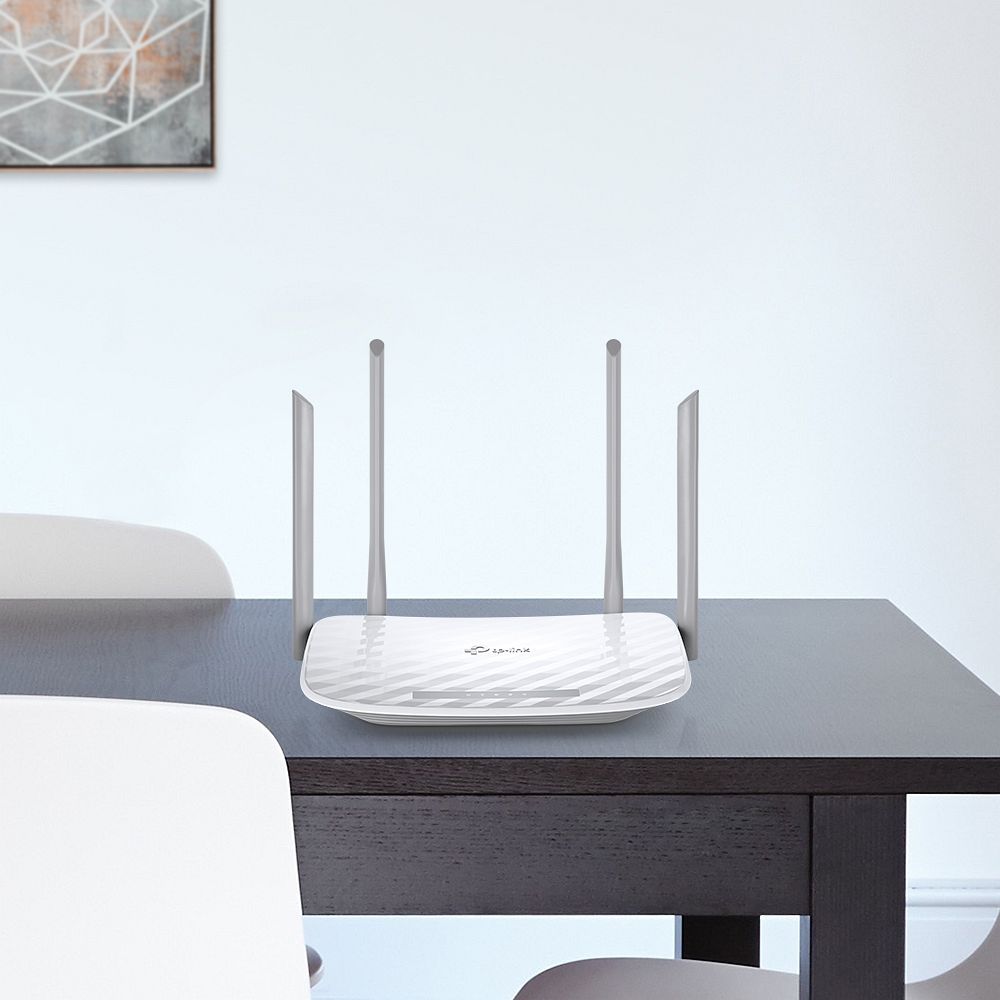

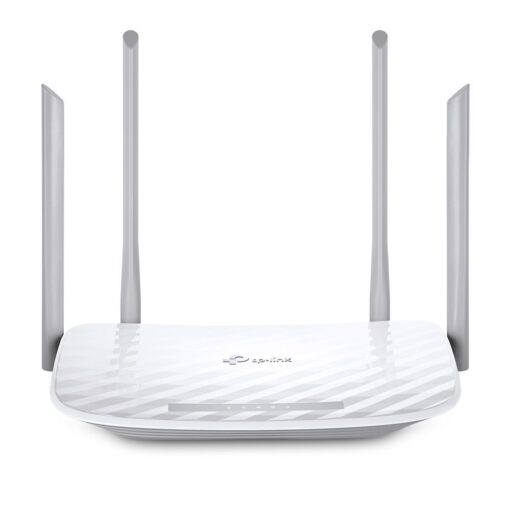

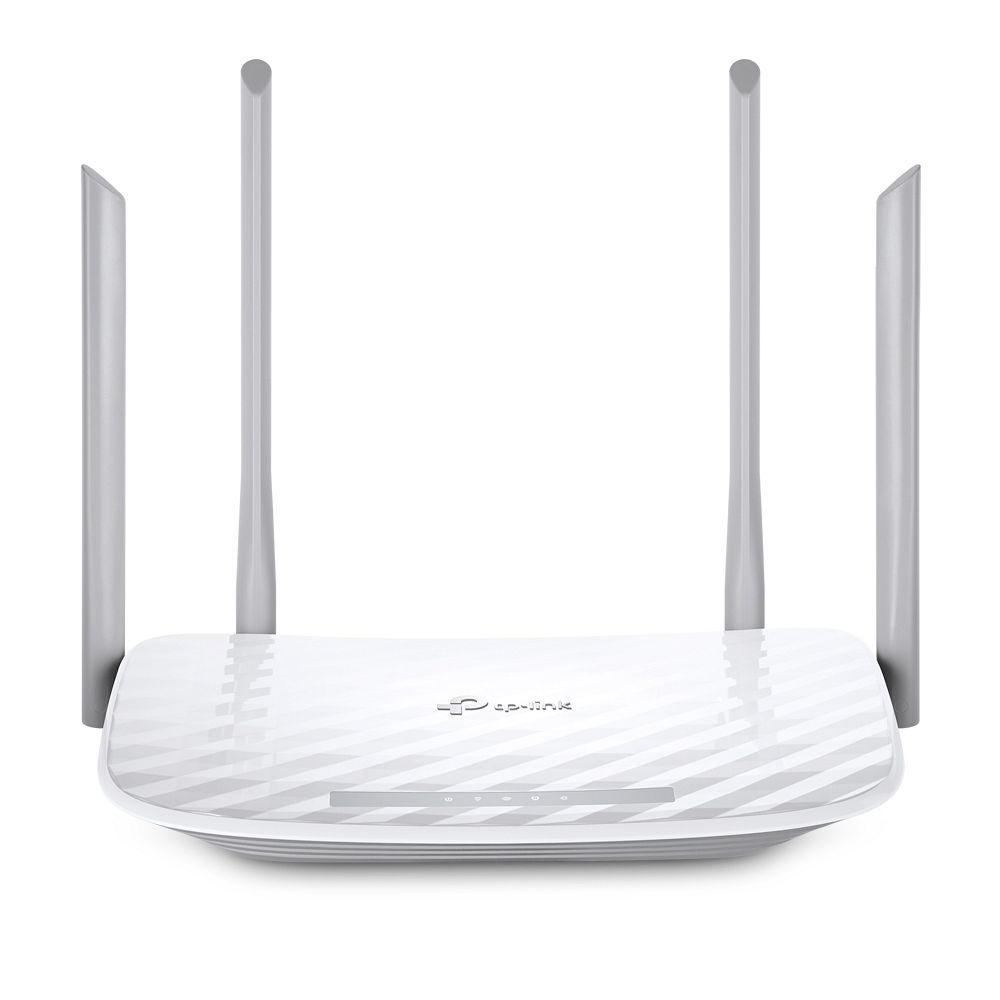

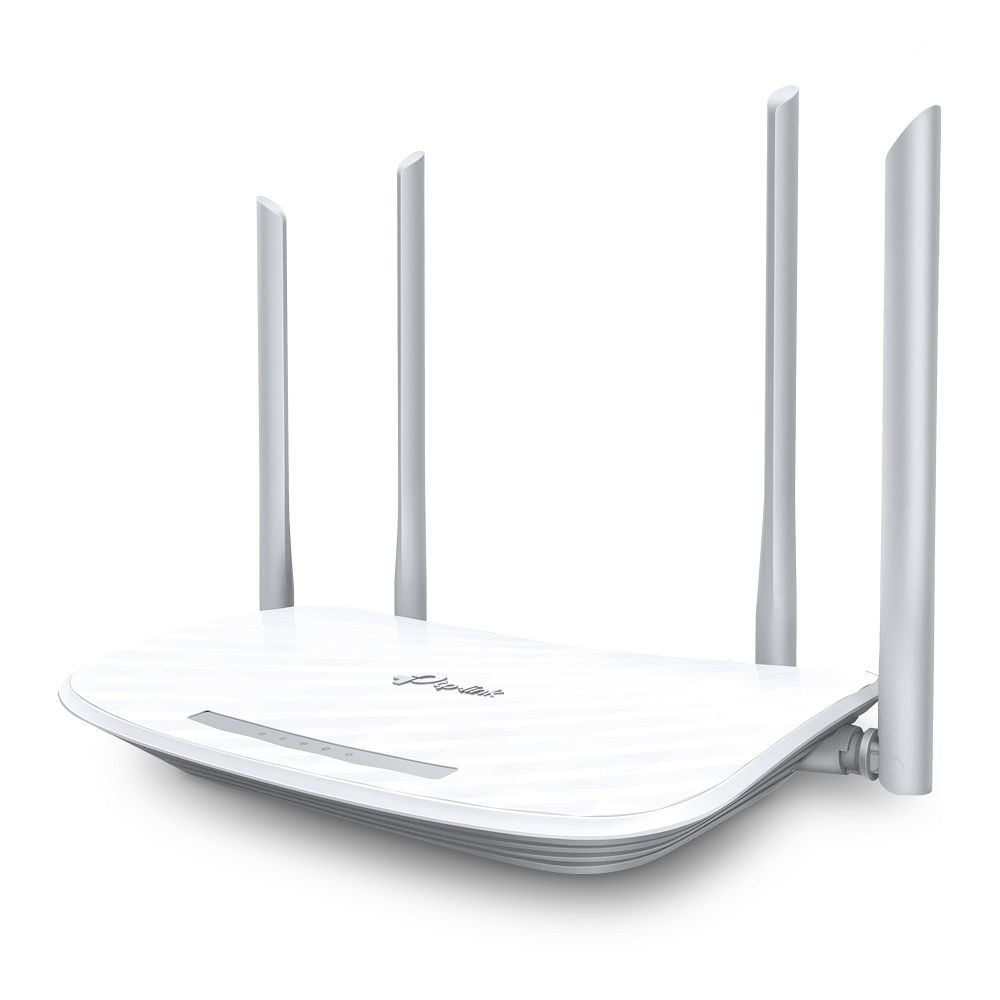

Equipped with four external antennas, the Archer C50 creates a strong and reliable wireless network in your home. Beamforming technology focuses the Wi-Fi signal towards your connected devices, providing better Wi-Fi coverage and higher network performance.

Parental Controls
Supervise children and staff by setting access in advance. Use keywords to block sites and limit Internet access.

Guest Network
Allow guests to access your Wi-Fi network while protecting their privacy.

More simultaneous connections
With MU-MIMO technology, Archer C50 increases the efficiency of the offered connections, helping devices to achieve optimal performance. Dual simultaneous data streams allow all connected devices to achieve higher speeds than regular AC routers.

Easy Setup
You can set up the Archer C50 in minutes with the intuitive Tether app or web configuration page. Tether also allows you to manage your network (including Parental Controls and Access Control) after setup from any Android or iOS device.

Features:
– IPv6 Support – Future-proof your network with IPv6 support.
– IPTV – Enhance your IPTV streaming capabilities with IGMP Proxy/Snooping Bridge and VLAN Tagging.
– LED Control – Set the LED schedule according to your requirements. Flashing lights won’t disturb you while you sleep.
– Tether App – The Tether App lets you easily manage your network from any Android or iOS device.

SPECIFICATION:
WIRELESS NETWORK:
– Standards: Wi-Fi 5, IEEE 802.11ac/n/a 5 GHz, IEEE 802.11n/b/g 2.4 GHz
– WiFi speeds: AC1200, 5 GHz: 867 Mbps (802.11ac), 2.4 GHz: 300 Mbps (802.11n)
– WiFi coverage: 3-room homes, 4 integrated antennas provide enough power to boost the signal and cover a large area
– Beamforming: Directing the network signal to the client to increase the Wi-Fi range
– WiFi performance: Average, Dual band, dividing devices between available bands for optimal performance
– 2×2 MU-MIMO: Allows simultaneous communication with multiple clients supporting MU-MIMO
– Working modes: Router mode, Access point mode, Repeater mode
TRANSMISSION SECURITY:
– Network protection: SPI Firewall, Access Control, IP and MAC Binding, Application Layer Gateway
– Guest network function: 5GHz guest network, 2.4GHz guest network
– WiFi encryption: WPA, WPA2, WPA3, WPA/WPA2-Enterprise (802.1x)
HARDWARE FEATURES:
– Processor: Single-core processor

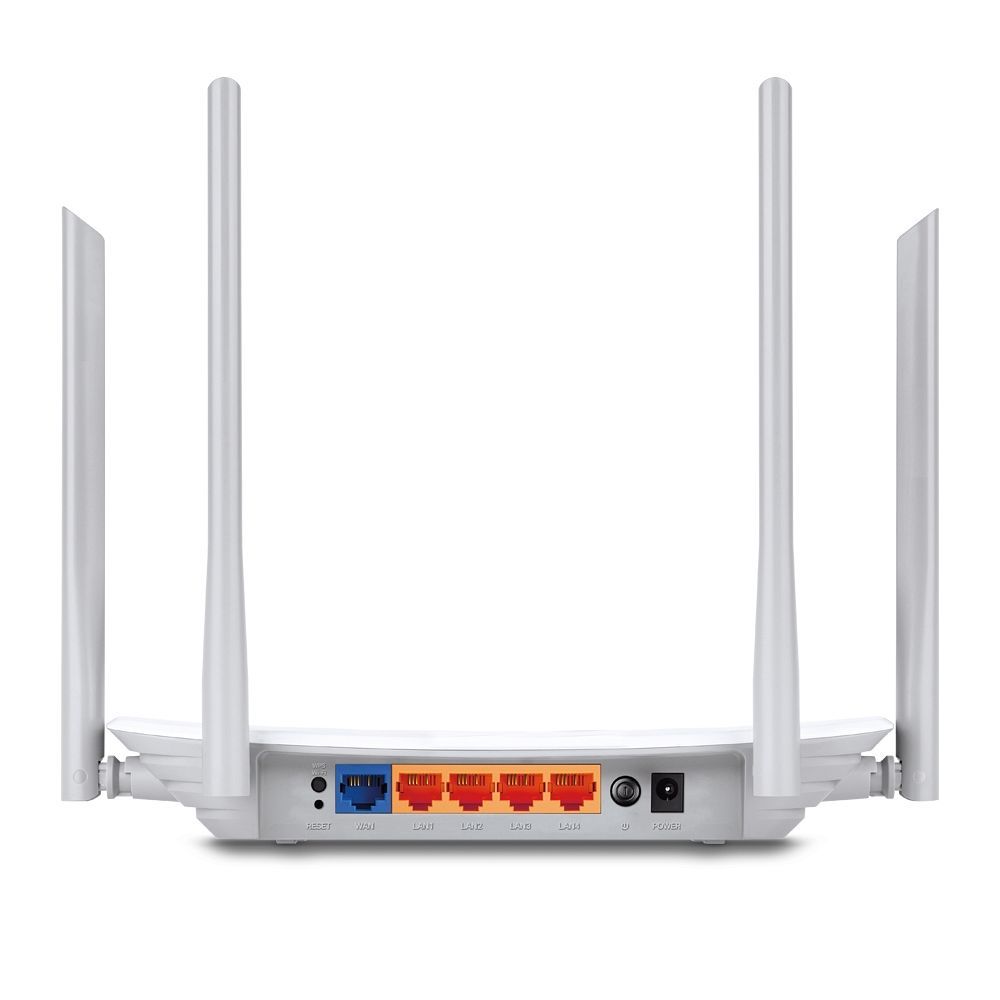

– Ethernet ports: 1 x 10/100Mbps WAN port, 4 x LAN ports 10/100 Mbps
– Buttons: WPS/Wi-Fi, Power, Reset
– Power supply: 9 V ⎓ 0.85 A
SOFTWARE:
– Protocols: IPv4, IPv6
– Parental Controls: URL Filtering, Time-based Access Restrictions
– WAN Types: Dynamic IP, Static IP, PPPoE, PPTP, L2TP
– Quality of Service: QoS Prioritization for Devices
– NAT Forwarding: Port Forwarding, Port Triggering, DMZ, UPnP
– IPTV: IGMP Proxy, IGMP Snooping, Bridge, VLAN Tagged
– DHCP: Address Reservation, DHCP Client List, Server
– DDNS: NO-IP, DynDNS
– Management: Tether App, Management Page
OTHER:
– System Requirements: Internet Explorer 11+, Firefox 12.0+, Chrome 20.0+, Safari 4.0+ or ​​other JavaScript-enabled browser, Cable or DSL modem (if required), ISP agreement (for Internet access)
– Certifications: FCC, CE, RoHS
– Operating Environment: Operating Temperature: 0℃~40℃ (32℉ ~104℉), Storage Temperature: -40℃~70℃ (-40℉ ~158℉), Humidity: 10%~90%, non-condensing, Storage Humidity: 5%~90%, non-condensing
TESTING DATA:
– WiFi Transmission Power: CE EIRP: <20dBm (2.4GHz), <23dBm (5GHz); FCC: <30dBm (2.4GHz & 5GHz)
– WiFi Receiving Sensitivity: 5GHz:11a 54M: -73dBm, 11ac VHT20 MCS8: -68dBm 11ac VHT40 MCS9: -64dBm, 11ac VHT80 MCS9: -60dBm; 2.4GHz: 11g 54M: -76dBm, 11n HT20 MCS7: -74dBm, 11n HT40 MCS7: -71dBm
PACKAGE APPEARANCE AND CONTENTS:
– Dimensions (W×D×H): 229.9 × 144.2 × 36.9 mm (9.1 × 5.7 × 1.5 inches)
– Package contents: Archer C50 Wi-Fi Router, Power adapter, RJ45 Ethernet cable, Quick Installation Guide
